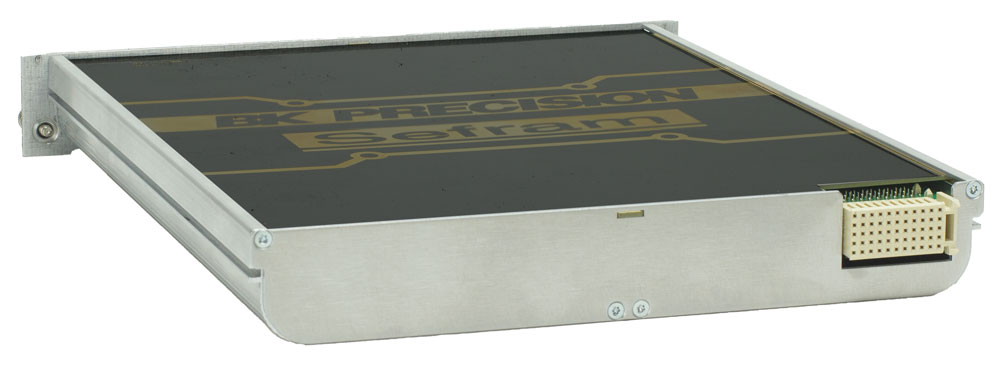

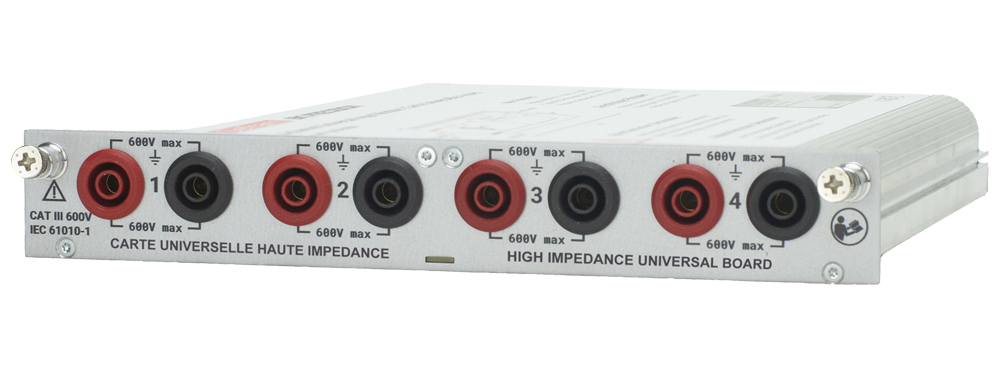

Model D18-HIZ4
DAS1800 System
4-Channel High Impedance Universal Module
Price: $3090 / 2 yr Warranty
Overview
The DAS1800 can be configured for a wide variety of applications with slots for 10 input modules each supporting 4 or 8 measurement channels. Acquire data from any sensor with a voltage or current output (with shunt), or directly measure voltage, resistance, or temperature using thermocouples or resistance temperature detectors (RTDs).
For capturing rapidly changing signals and transients, the DAS1800 can simultaneously measure and record up to 40 channels at 1 MSa/s/ch and stream the data directly to the solid-state drive. Weighing approximately 15 lbs (6.8 kg), the base unit is the lightest all-in-one system in its class. The DAS1800 features a large 15.6" Full HD touch screen display for easy setup and visualizing real-time or recorded data, and the optional internal battery provides up to 3.5 hours of battery operation for testing in the field.
The highly intuitive user interface of the DAS1800 makes it easy to use with a multitude of time saving features such as one finger scrolling, pinch and zoom, and a built-in sensor library. View measurements as real-time waveforms and numeric values on customizable dashboards. For viewing data on a PC, download the free DASpro software. For remote control, the DAS1800 supports web server and VNC connections.
Features and benefits
For capturing rapidly changing signals and transients, the DAS1800 can simultaneously measure and record up to 40 channels at 1 MSa/s/ch and stream the data directly to the solid-state drive. Weighing approximately 15 lbs (6.8 kg), the base unit is the lightest all-in-one system in its class. The DAS1800 features a large 15.6" Full HD touch screen display for easy setup and visualizing real-time or recorded data, and the optional internal battery provides up to 3.5 hours of battery operation for testing in the field.
The highly intuitive user interface of the DAS1800 makes it easy to use with a multitude of time saving features such as one finger scrolling, pinch and zoom, and a built-in sensor library. View measurements as real-time waveforms and numeric values on customizable dashboards. For viewing data on a PC, download the free DASpro software. For remote control, the DAS1800 supports web server and VNC connections.
Features and benefits
- Stream 40 channels at 1 MSa/s/ch
- Up to 80 analog inputs with D18-MUX8 multiplexed module
- Measure up to ± 600 VDC
- 10 slots and 3 measurement modules available: Universal (4 ch), Multiplexed (8 ch), High Impedance (4 ch)
- Temperature measurements with thermocouples and RTDs
- Store sensor information and parameters in the sensor library
- Simultaneous recording at multiple sample rates (up to 4)
- Internal signal conditioning with analog and digital filters
- 15.6" Full HD touchscreen display
- 2 TB internal SSD (standard)
- Advanced calculations and automatic measurements
- Battery option (up to 3.5 hours of operation)
- 16 digital input channels (24 V) and 4 digital outputs
- Dedicated 5 W power rail for sensors with different voltages : +3.3 V, +5 V, +12 V, +24 V
- USB 3.0 (x2), USB 2.0 (x2), LAN 1 Gbps (x2), and HDMI (x1)
- Rugged carrying case included
Models
| Product | Channels | Description | MSRP |
|---|---|---|---|
| D18-UNI4 | 4 | 4-Channel Universal Input Module | $2890 |
| D18-HIZ4 | 4 | 4-Channel High Impedance Universal Module | $3090 |
| D18-MUX8 | 8 | 8-Channel Multiplexed Module | $2890 |
| DAS1800-BAT | 80 | High Speed Data Acquisition System | $14390 |
| DAS1800 | 80 | High Speed Data Acquisition System | $12990 |
| D18-FLE | N/A | Fanless DAS1800 Base Unit Option | $1000 |
| D18-HVM4 | 4 | 4-Channel High Voltage Module | $3390 |
| D18-RK | N/A | Rackmount DAS1800 Base Unit Option | $640 |
Documents
Documentation
Software
|
Description |
Version |
Download |
|---|---|---|
|
DAS1800 Viewer software, no install requirement
|
1.1.2
|
|
|
DAS1800 Viewer software w/ install
|
1.1.2
|
Accessories
Current transducer (10 mVAC/1 AAC, 200 A, Ø 15 mm)
SP201
- Jaw opening 15 mm
- Current transducer 200A AC
- Out put voltage 10mV AC/1A AC
- Bandwidth 40 Hz to 5 KHz
- Safety : for isolated conductor only
- MSRP: $139
Current transducer (100 mVAC/1 AAC, 10A, Ø 15 mm)
SP221
- Jaw opening 15 mm
- Current transducer 10A AC
- Out put voltage 100mV AC/1A AC
- Bandwidth 40 Hz to 5 KHz
- Safety : for isolated conductor only
- MSRP: $239
Current transducer (1 mVAC/ 1AAC, 1200 A, Ø 50 mm)
SP230
- Jaw opening 50 mm
- Current transducer 1200A AC
- Out put voltage 1mV AC/1A AC
- Bandwidth 40 Hz to 5 KHz
- Safety : for isolated conductor only
- MSRP: $299
Current transducer (1 mVAC+DC/ 1AAC+DC, 1200 A, Ø 50 mm)
SP261
- Jaw opening 50 mm
- Current transducer 1200A
- Out put voltage 1mV/1A
- Bandwidth DC A 3KHz
- Safety : 600 V CAT III
- MSRP: $469
Current transducer (1 mVAC/1 AAC, 2000 A, Ø 70 mm)
SP270
- Current transducer up to 2000 A
- Output voltage 1mV AC / 1A AC
- Bandwidth 40 Hz to 5 KHz
- Jaw opening 70 mm
- Safety : 600 V CAT III
- MSRP: $579
- MSRP: $825
Flexible Current Clamp 3000A AC
A1587
- Diameter : 25 cm
- 3 ranges : 30A/300A/3000A
- Universal plug inputs
- MSRP: $339
Logic channels patch cord
902407000
For use with:
- DAS220-BAT
- DAS240-BAT
- DAS30
- DAS30-P
- DAS30-T
- DAS30-PT
- DAS50
- DAS50-P
- DAS50-T
- DAS50-PT
- DAS60
- DAS60-P
- DAS1700
- 8460
- DAS1800
- MSRP: $359
